I received the connect box 3, so I should get 2.5Gb/s.

Bianpie · 2025-05-04T18:14:51+00:00

Sunrise community - customers help other customers with topics related to television, Internet, telephone and mobile. Register now!

Bianpie

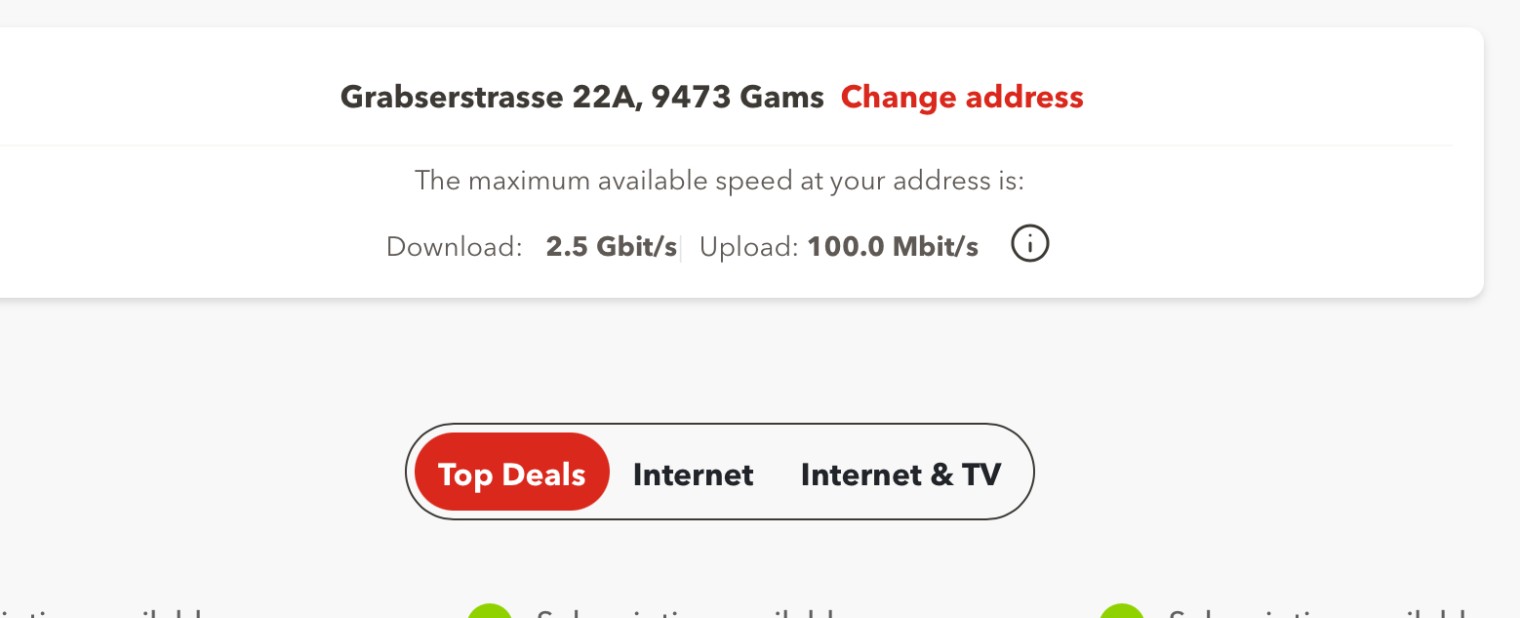

I received the convection box 3, so I should get now 2.5Gb/s. Before upgrading I checked that the area where I live was covered: it is, with 2.5Gb/s.

I connected my MAC MINI PRO m4 via a cable 7 directly to the connect box 3 (2.5Gb/s Ethernet connection). I stopped any antivirus, firewall…

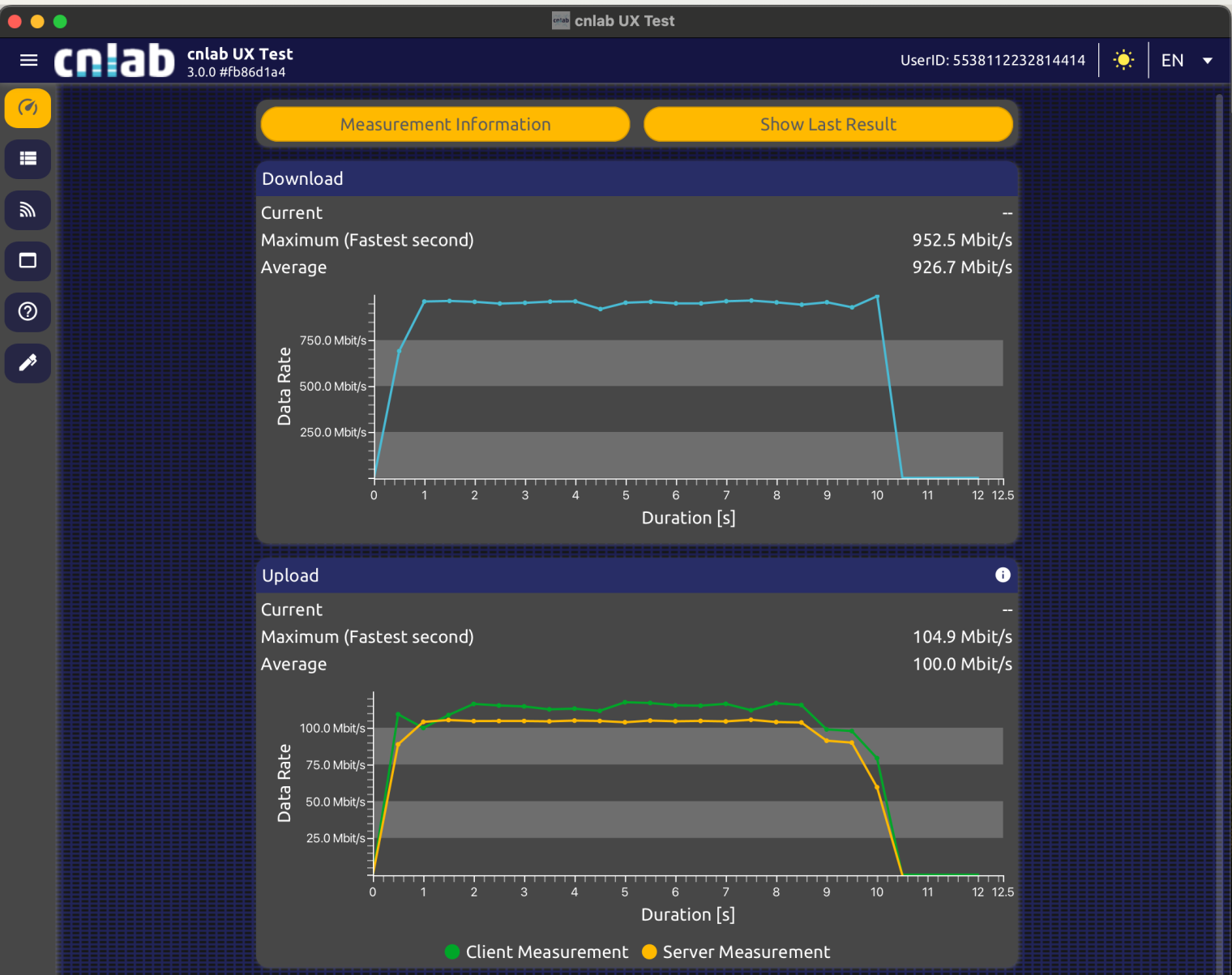

The test results are pretty consistent whichever app I use. Enclosed please find the results using cnlab ux.

Thank you in advance for your help

Pietro

Xydocq

hello Bianpie

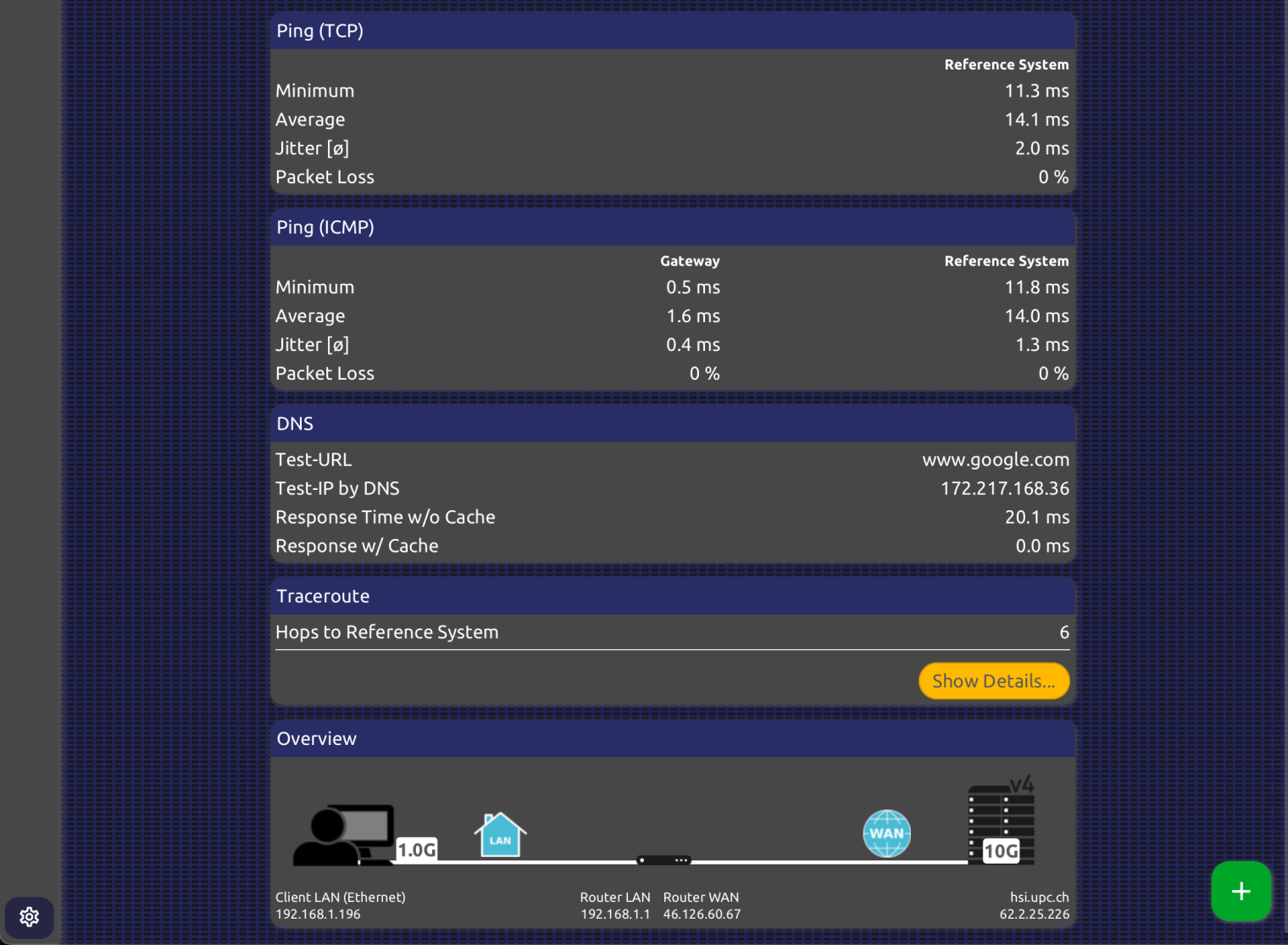

So far everything looks fine to me, except you don’t have a 2.5Gbit/s LAN connection.

It states 1.0G. Please keep in mind only port 4 on the Connect Box 3 HFC is capable of 2.5Gbit/s.

Bianpie

Xydocq

Thank you so much for your support!!

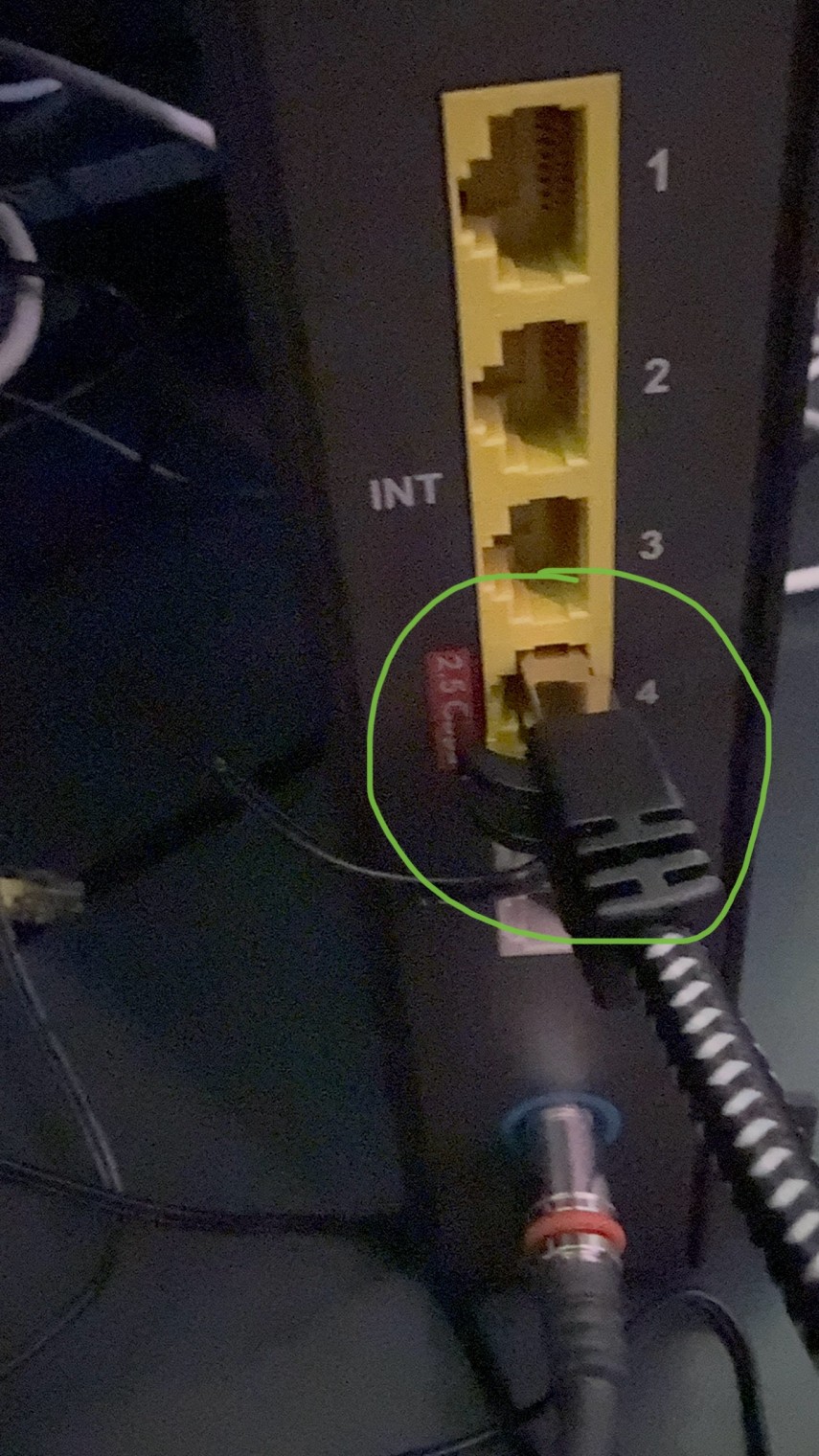

Well, I have the connect box 3 linked with my Mac Mini pro M4 via a class 7 cable. And see the picture, the cable is connected to port 4.

Why the connect box sends out only 1 Gb/s

Thanks

Xydocq

Bianpie

are you sure your Mac Mini is set to have a 2.5Gbit/s connection? Usually it sells with a 1Gbit/s NIC unless you add the 10Gbit/s option.

https://www.apple.com/ch-de/shop/product/HRG32ZM/A/belkin-usb-c-auf-25-gb-ethernet-adapter

Bianpie

Xydocq

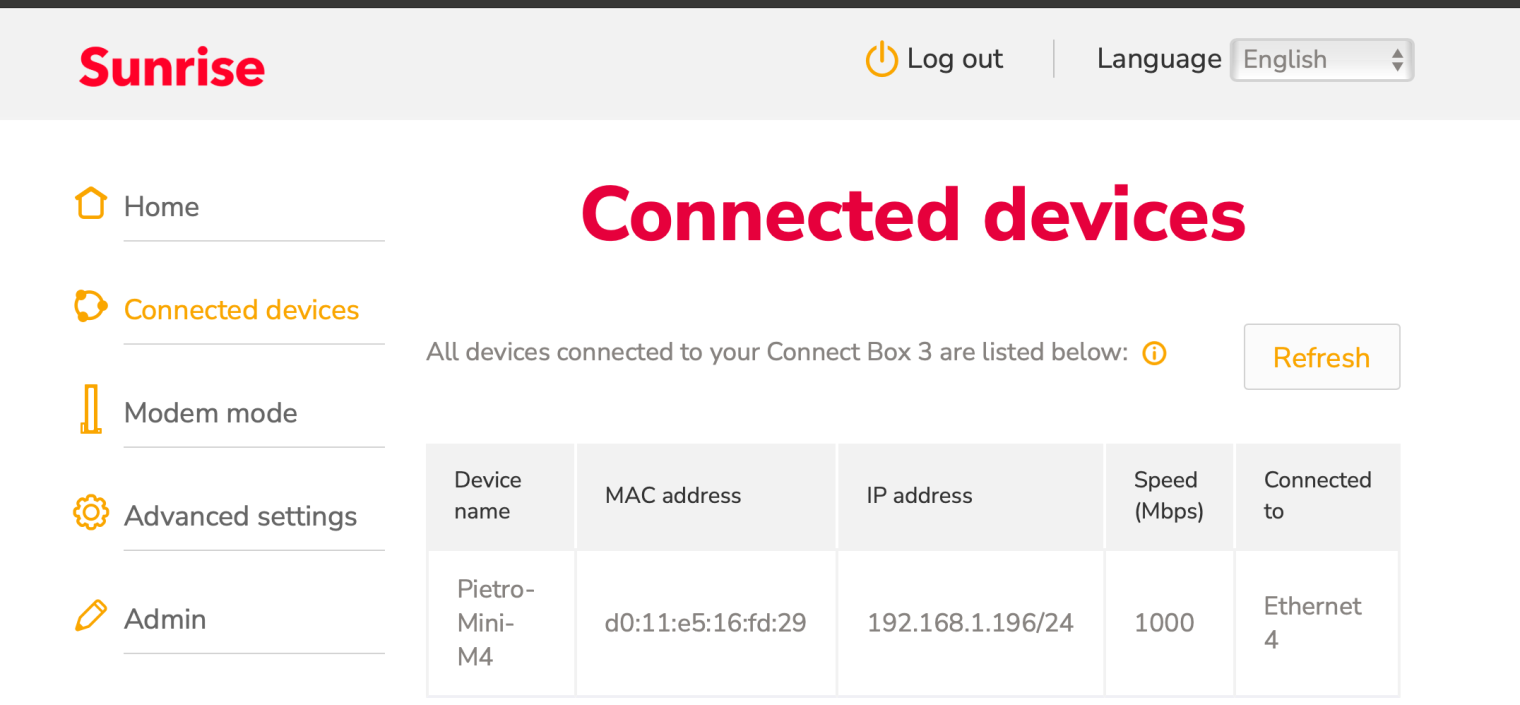

T his is the speed measured directly by the router (see picture).

By the way, I just ordered the adapter you suggested to get 2.5Gbps via usb-c. Thank you so much

Bianpie

You are spot on!!! amazing… I did not know it was an optional (the 10Gbps) on the Mac mini M4 pro…

So I used my router (ASUS Zen Wi-Fi AX), connected to the connect box 3 using the 2.5Gbps respective ports. If I run the “internal test” ASUS provides (based on Speedtest I believe), the max speed is 1.2Gbps.

Why not close to 2.5Gps?

You are great, thank you!

Bianpie

Cannot upload any more picture, but my router shows 1.3Gbps

Xydocq

Bianpie don’t worry too much.

I got similar speeds with my ASUS XT8 AX6600

There’s a known issue with some devices connected to Port 4 of the Connect Box 3. Some work just fine, some work somehow and some don’t work at all. The AX is one that works somehow.

The Belkin adapter should provide speeds up to 2Gbit/s down and 100Mbit/s up.

Bianpie

Xydocq
Well, as you are so competent and helpful, could I ask you if there is a list of perfectly working devices, ideally WiFi 7?
P.S. you start very early on Monday morning, that’s commitment!👌
Pietro

Bianpie

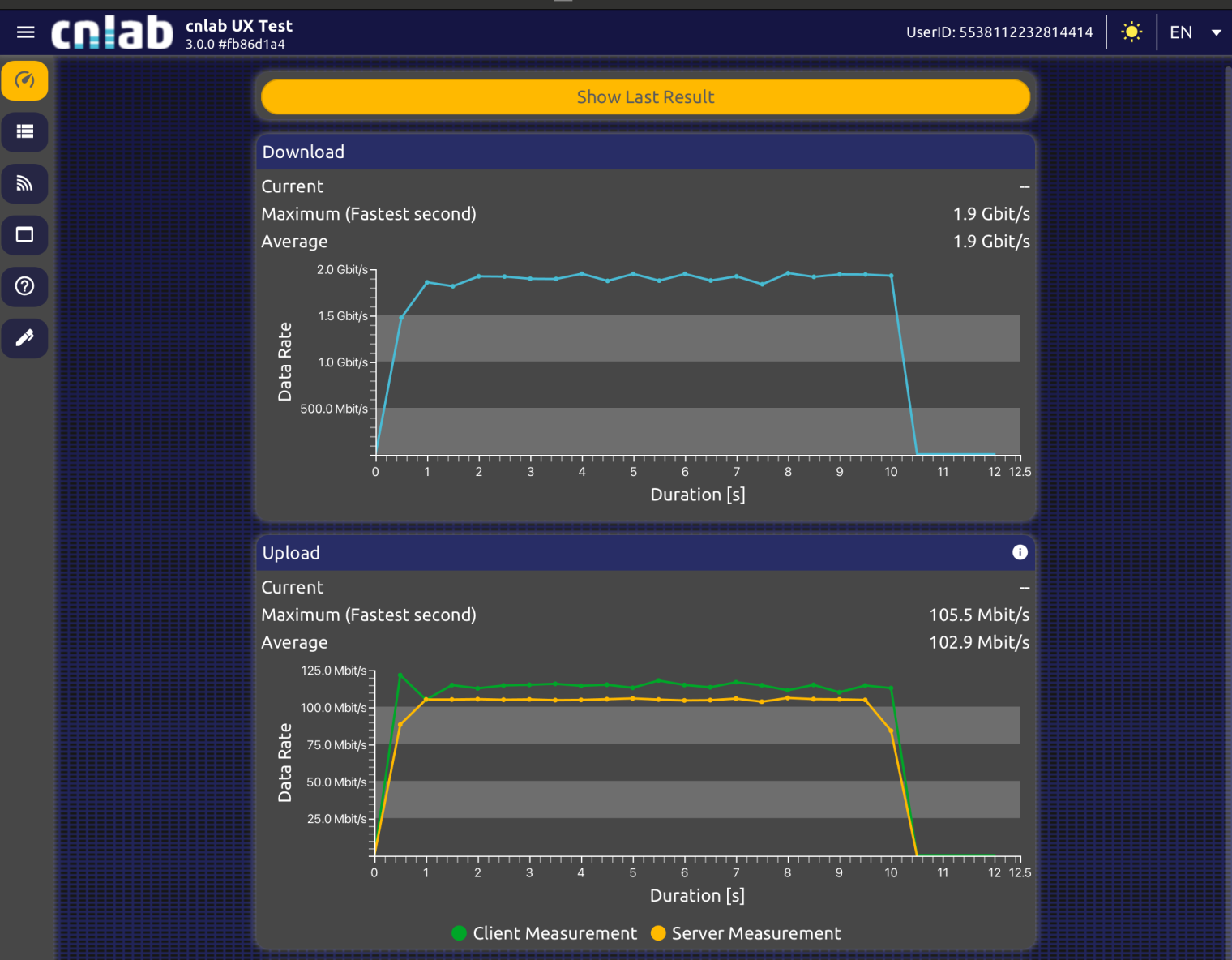

Xydocq I got exactly 2 gbps download and 100mbps upload using the Belkin 2.5gbps adapter.

Xydocq

Bianpie

Unfortunately there’s no such list.

Currently we know of two switches working with the Connect Box 3 on Port 4. Zyxel MG-105 and the Ubiquiti Flex mini 2.5Gb. Adding a WIFI 7 AP to a switch should work.

Bianpie

Xydocq Unfortunately the Ubiquiti Flex mini 2.5Gb did not provide any benefit…still stuck with 1.2gbps on my ASUS ROUTER. Not sure if there is anything else I could do.
Anyway, big thank you

Bianpie

Thank you so much, very very helpful!
